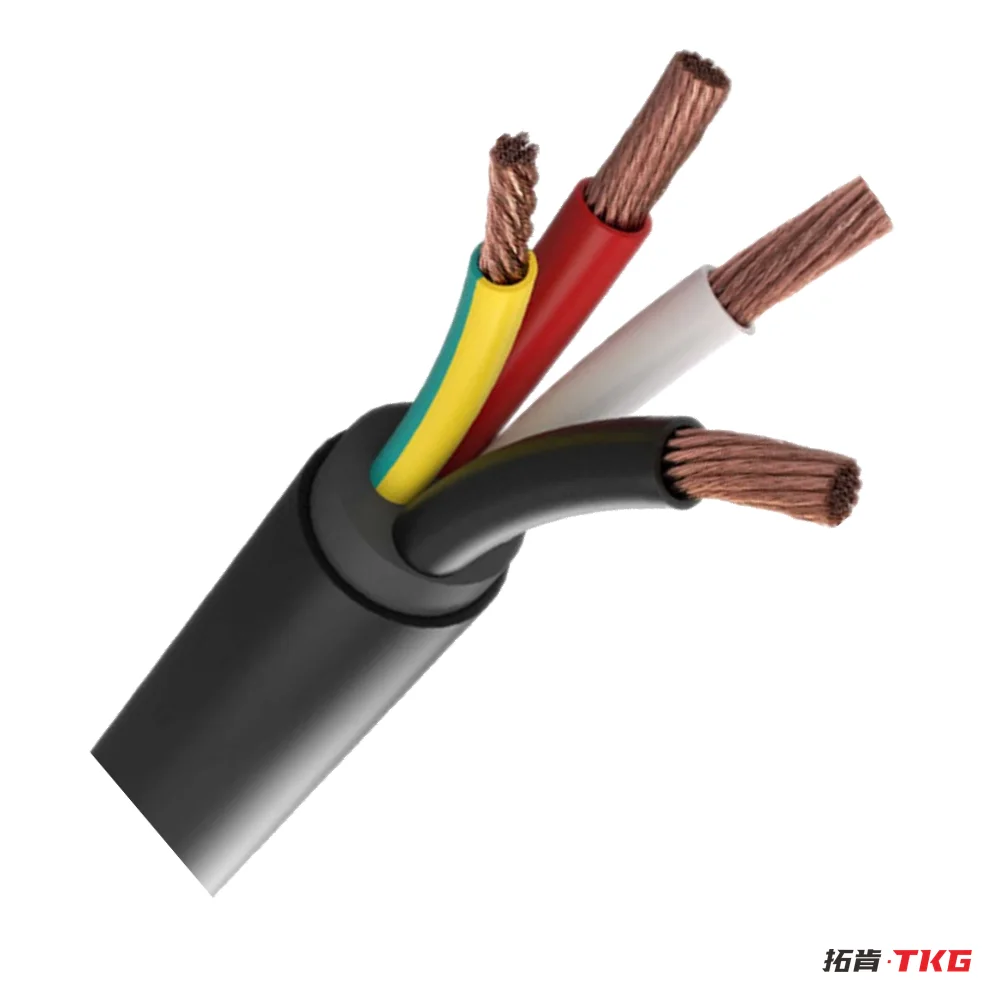

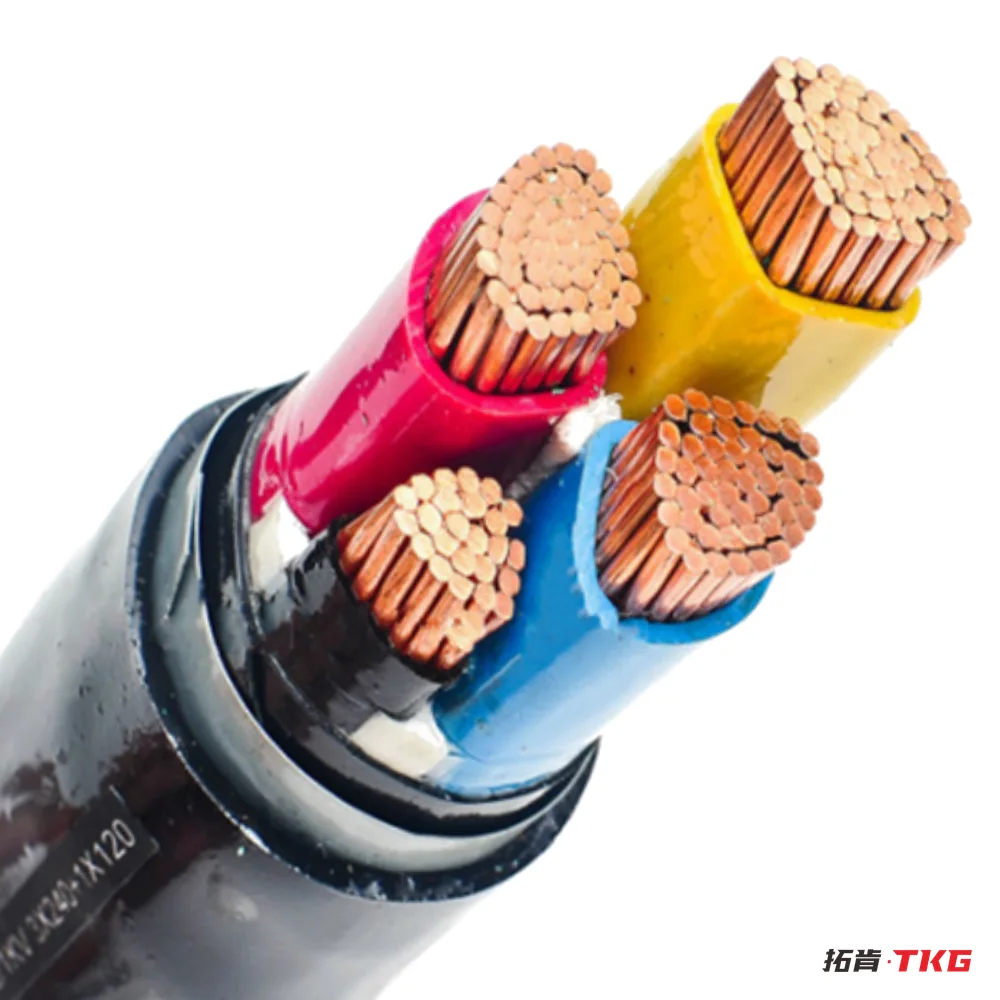

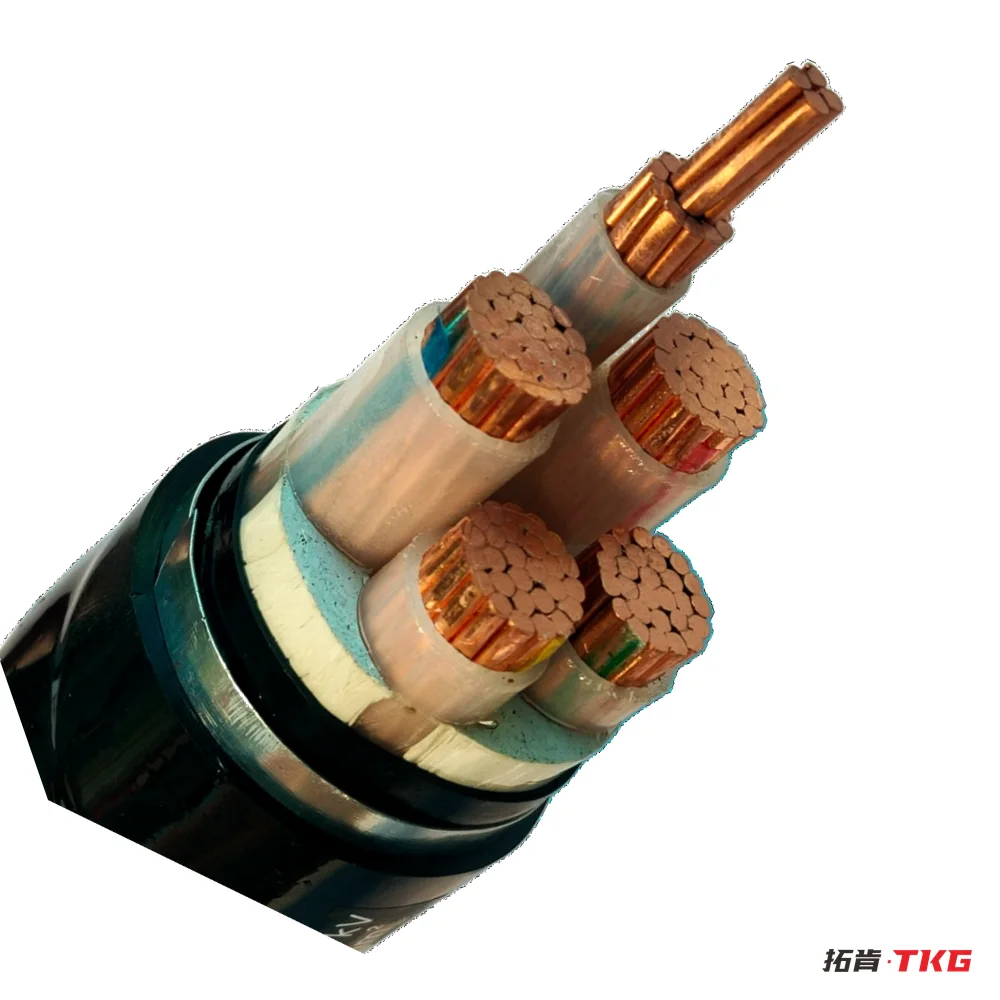

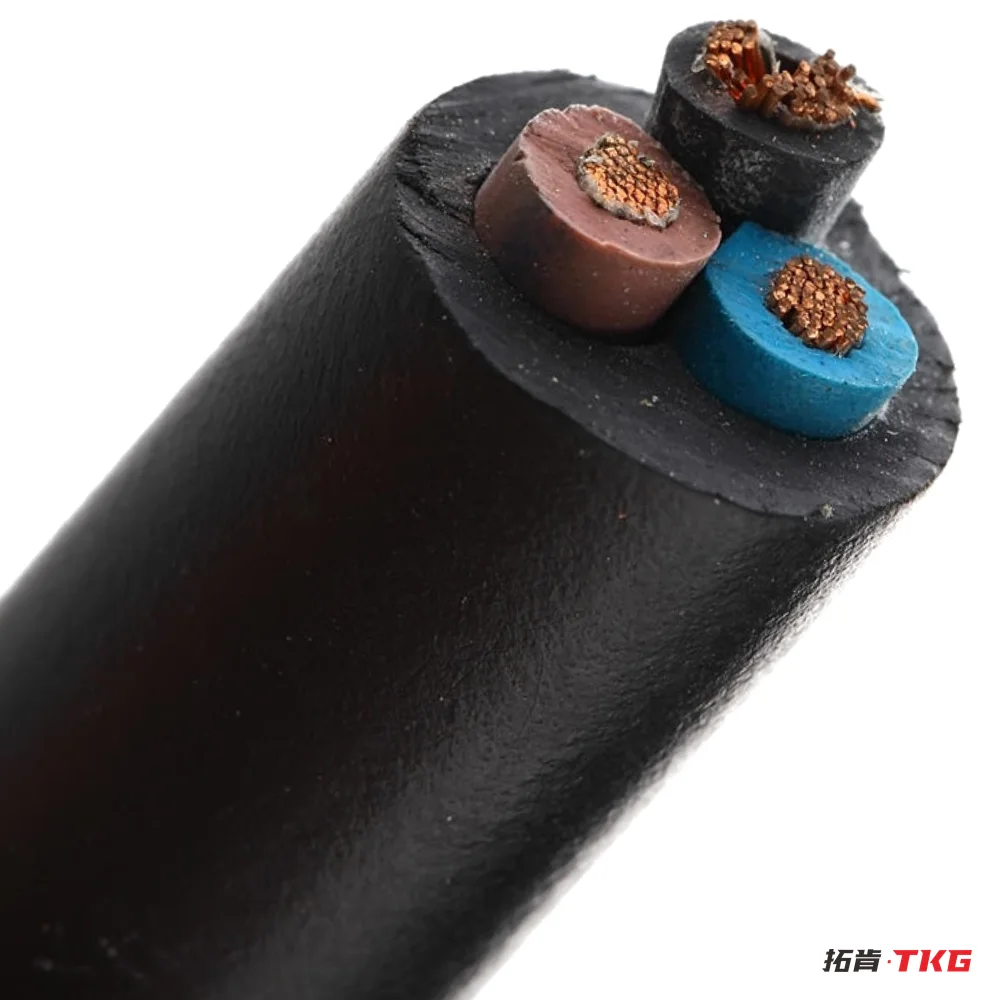

EV Charging Cable
TKG EV charging cables connect charging piles to vehicles in Mode 2, Mode 3 and Mode 4 systems. Fine-stranded copper, halogen-free insulation and a tough, abrasion-resistant sheath keep the cable flexible in cold weather and durable under daily plugging, crushing and outdoor exposure.
- Designed to IEC 62893 / EN 50620 for AC and DC charging
- Highly flexible Class 5/6 copper for easy handling at the charger
- Abrasion, oil, UV and crush resistant outer sheath
- Integrated signal / CAN cores for charging communication
IEC 62893 / EN 50620UL 62 / UL 2263IEC 60228RoHS / REACH
Factory direct priceSamples availableOEM / custom brandReply within 12 hours
MOQ: 500 m per size
Overview
TKG EV charging cables connect charging piles to vehicles in Mode 2, Mode 3 and Mode 4 systems. Fine-stranded copper, halogen-free insulation and a tough, abrasion-resistant sheath keep the cable flexible in cold weather and durable under daily plugging, crushing and outdoor exposure.
Key Features
1
Designed to IEC 62893 / EN 50620 for AC and DC charging
2
Highly flexible Class 5/6 copper for easy handling at the charger
3
Abrasion, oil, UV and crush resistant outer sheath
4
Integrated signal / CAN cores for charging communication
Cable Structure
| # | Layer | Material / Description |
|---|---|---|
| 1 | Conductor | Bare or tinned copper, Class 5/6 flexible |
| 2 | Insulation | Halogen-free cross-linked polyolefin (XLPO) |
| 3 | Filler | PP yarn or PVC filler |
| 4 | Outer sheath | XLPO, TPE or TPU — flexible and abrasion resistant |
Technical Specifications
| Parameter | Value |
|---|---|
| Types / models | EV-AC (Mode 2/3), EV-DC (Mode 4), 62893 IEC 125/127 |
| Rated voltage | AC 450/750 V · DC 1.0 / 1.5 kV |
| Conductor | Bare or tinned copper, Class 5/6 flexible |
| Cross-section | 2.5 – 95 mm² + 0.5 – 0.75 mm² signal |
| Rated current | 16 A – 250 A |
| Operating temperature | -40 °C … +90 °C |
| Flame performance | Flame retardant, halogen free, low smoke |
| Jacket | XLPO, TPE or TPU — flexible and abrasion resistant |
| Colours | Orange (HV), black or customised |
| Standard length | 100 m / 200 m coils, 500 m–1000 m drums |
Specifications above are typical values. Other sizes, cores, colours and standards are available on request.
Standards & Certifications
IEC 62893 / EN 50620Charging cables for electric vehicles
UL 62 / UL 2263EV and flexible cord requirements (North America)
IEC 60228Conductors of insulated cables
RoHS / REACHEnvironmental compliance
Application Scenarios

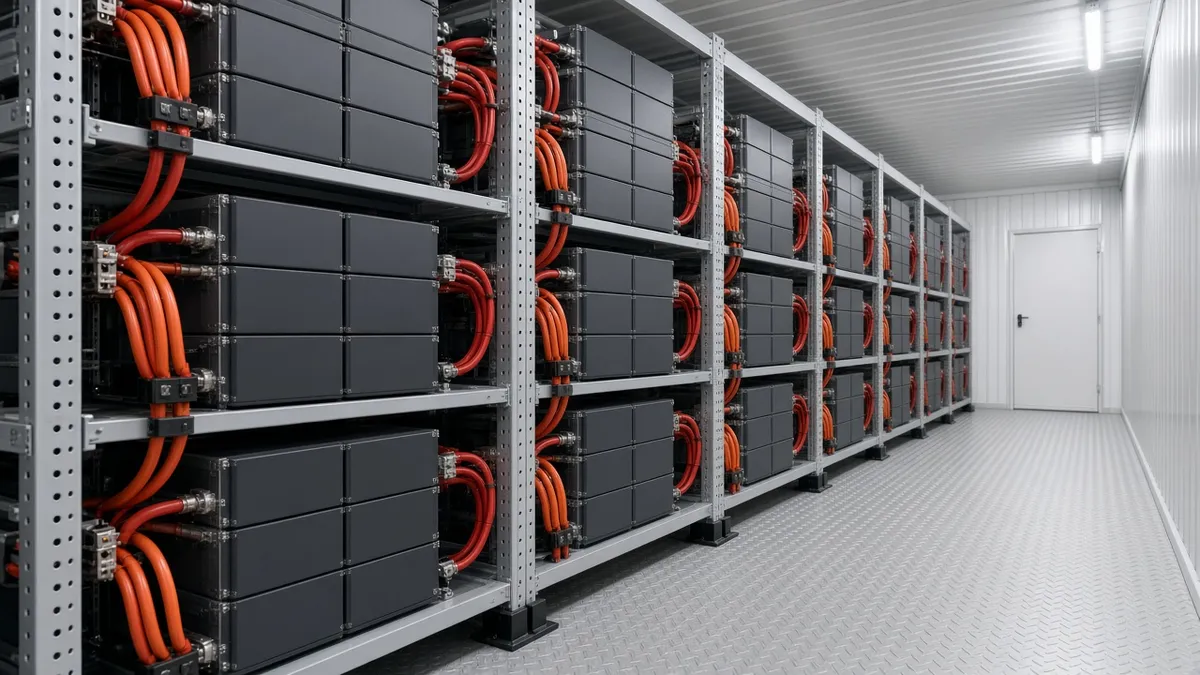

Battery energy storage (BESS)
Battery module, rack and PCS interconnections in containerised and residential storage systems.
Industrial plants
Power supply to motors, machines and production lines in factories, workshops and mines.
Packaging & Shipping
Standard packing is 100 m or 200 m coils in shrink film and cartons, or 500 m / 1000 m / 3000 m on wooden drums for projects. Cable ends are sealed against moisture, and every coil or drum carries a label with type, size, length and batch number for traceability. We load 20GP/40HQ containers at Ningbo or Shanghai port and offer FOB, CFR, CIF and DDP terms with full export documents, certificates and factory test reports.
FAQ
What standards does EV Charging Cable comply with?
TKG CHINA manufactures EV Charging Cable in accordance with IEC 62893 / EN 50620, UL 62 / UL 2263, IEC 60228 and RoHS / REACH. A factory test report is supplied with every shipment, and third-party inspection can be arranged on request.
Can I order EV Charging Cable with custom specifications or my own brand?
Yes. Conductor size, number of cores, colours, sheath printing, length and packaging can all be customised. OEM printing with your brand, labels and cartons is available.
What is the MOQ and lead time for EV Charging Cable?
The MOQ is usually 500 m per size. Standard specifications ship within 7–20 days after deposit, and samples can be prepared within a few days.
How do I get a price for EV Charging Cable?
Send us the specification, quantity and destination port through the inquiry form or WhatsApp. Our sales engineer will reply with a quotation and datasheet within 12 hours.
